Project Description

Our team is providing surveying and civil/site design services for the Meadowstone Townhomes Subdivision located in Orange County, NC. This development will include approximately 168 townhouses and will be situated on approximately 25 acres.

The design surveying services that our team will complete include a boundary survey, an annexation plat, and a topographic survey. The topographic survey will cover utility locations including pipe size, material, and inverts. Our team will also prepare the Annexation Petition as well.

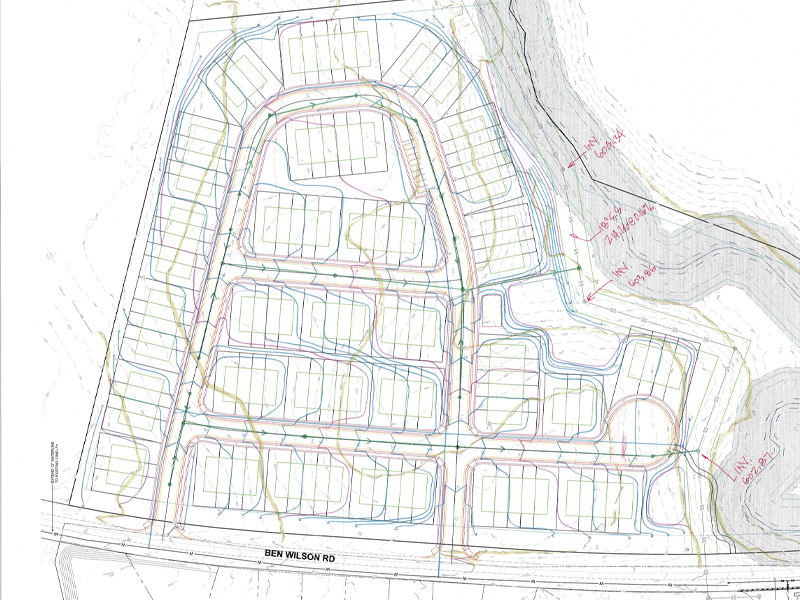

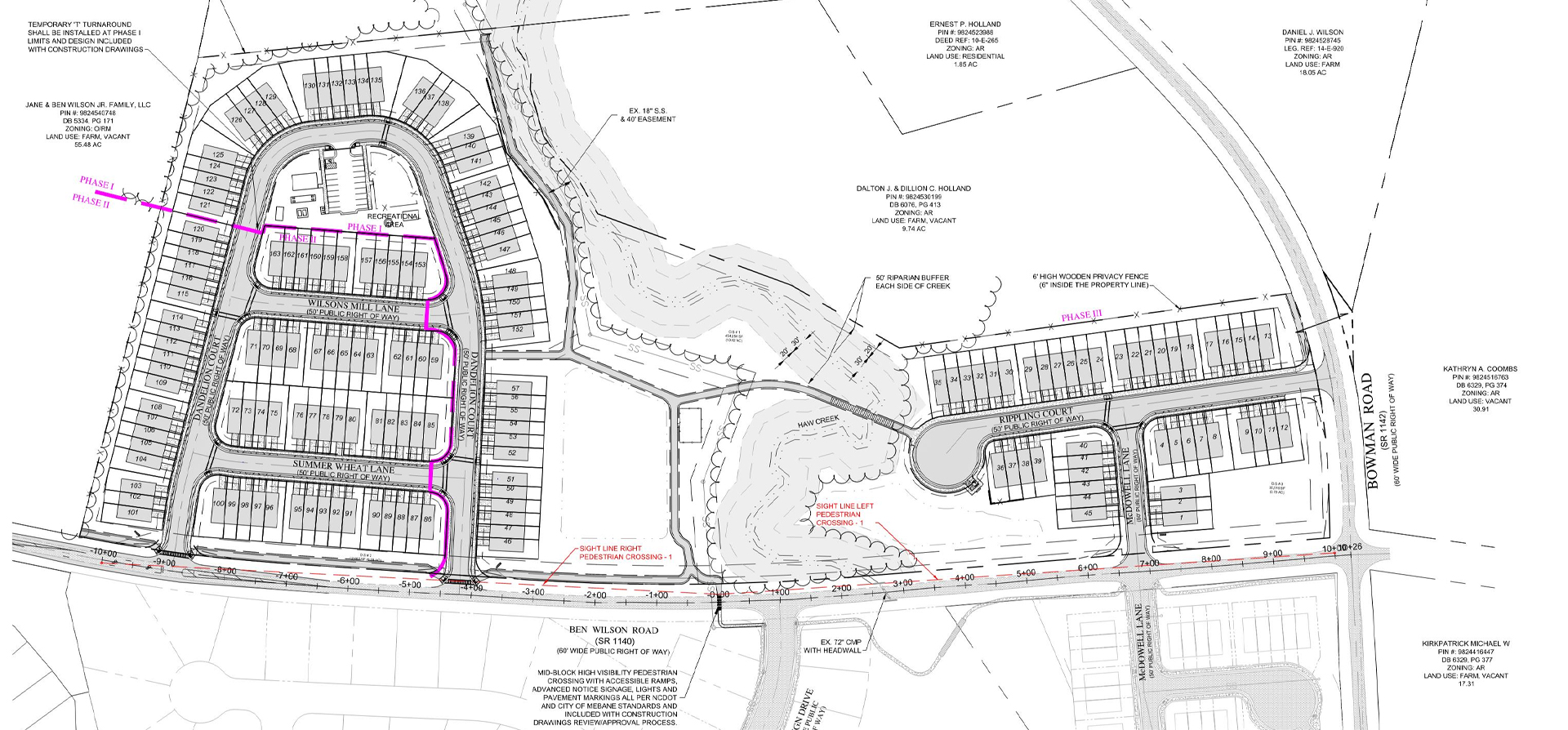

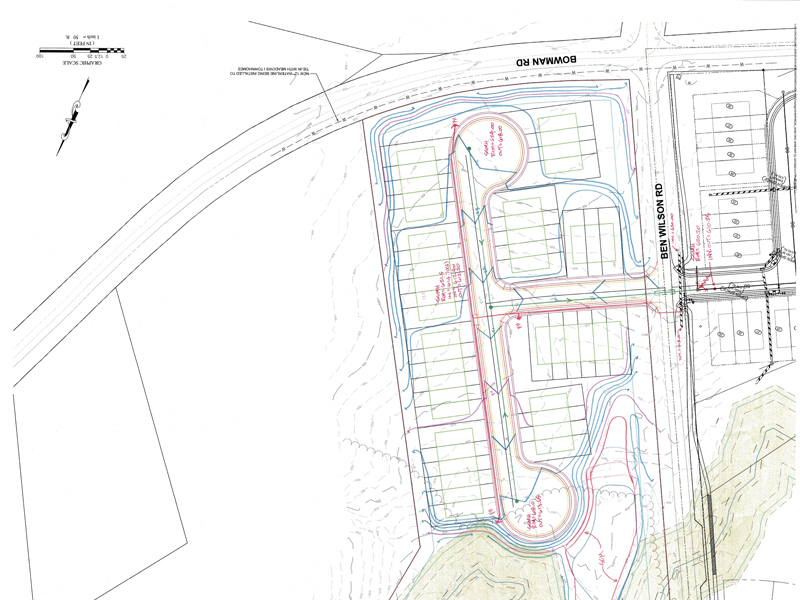

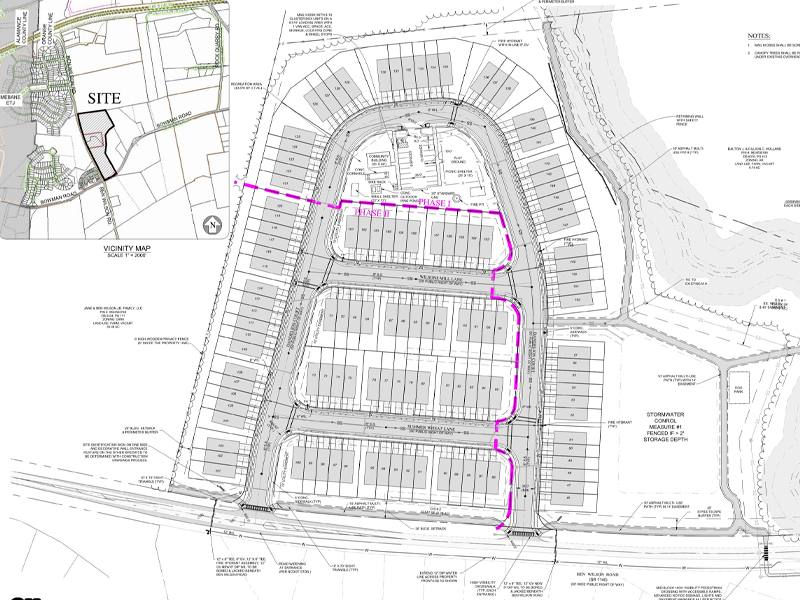

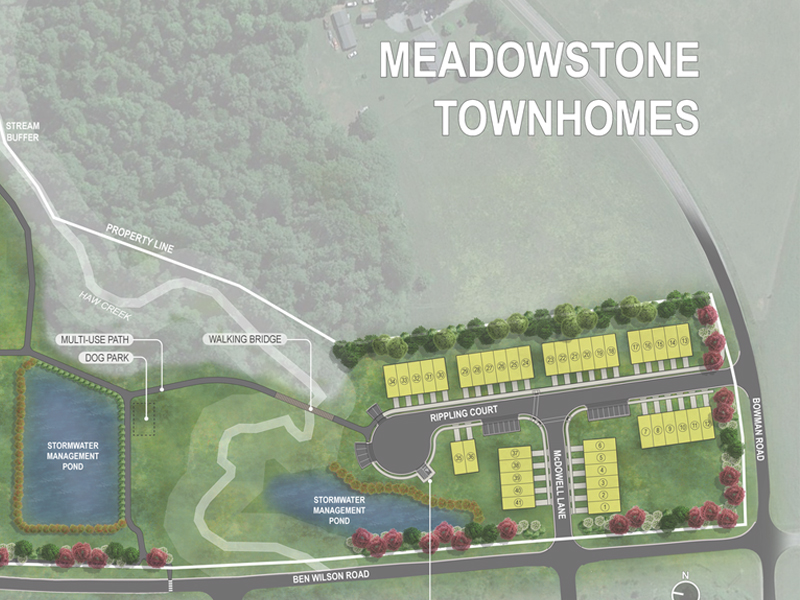

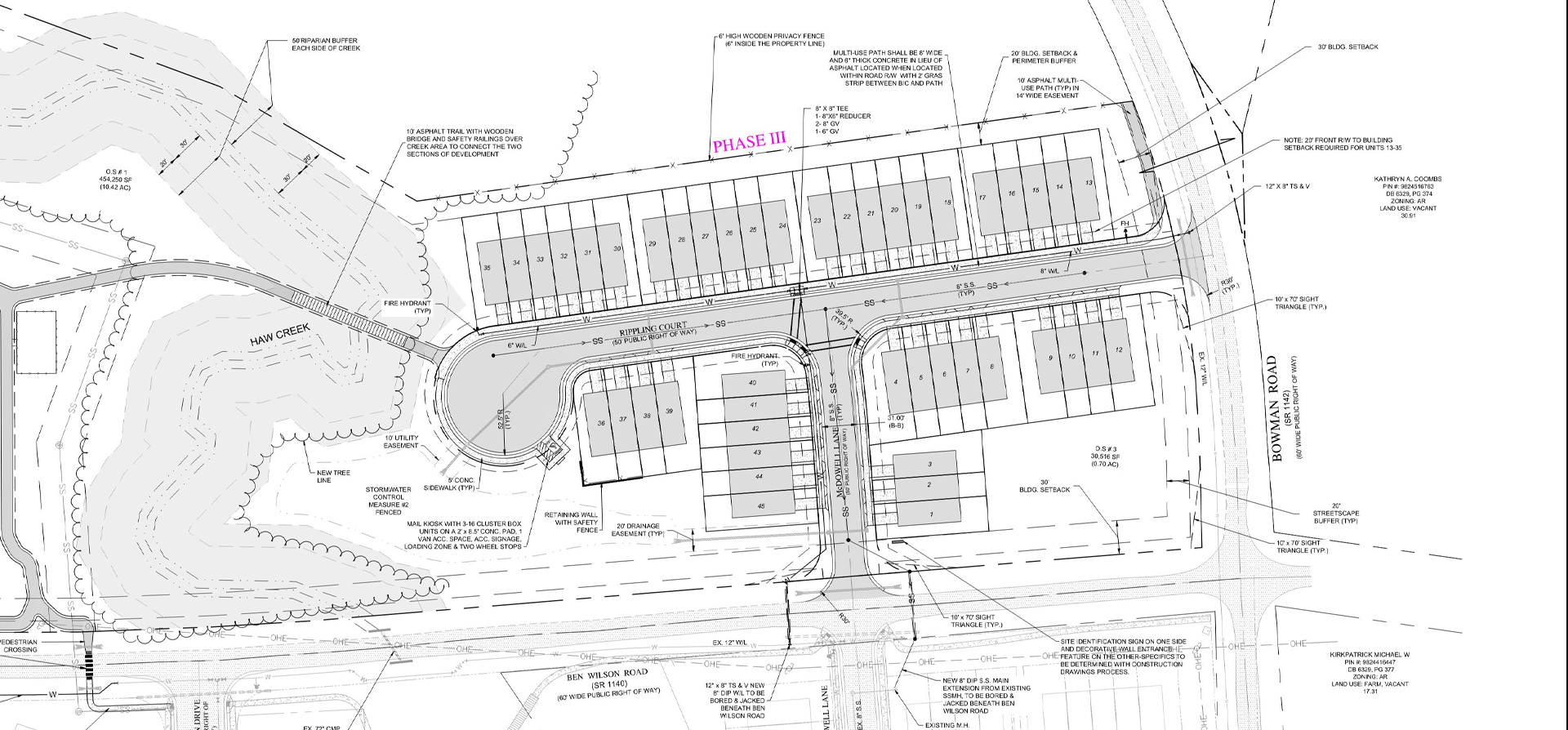

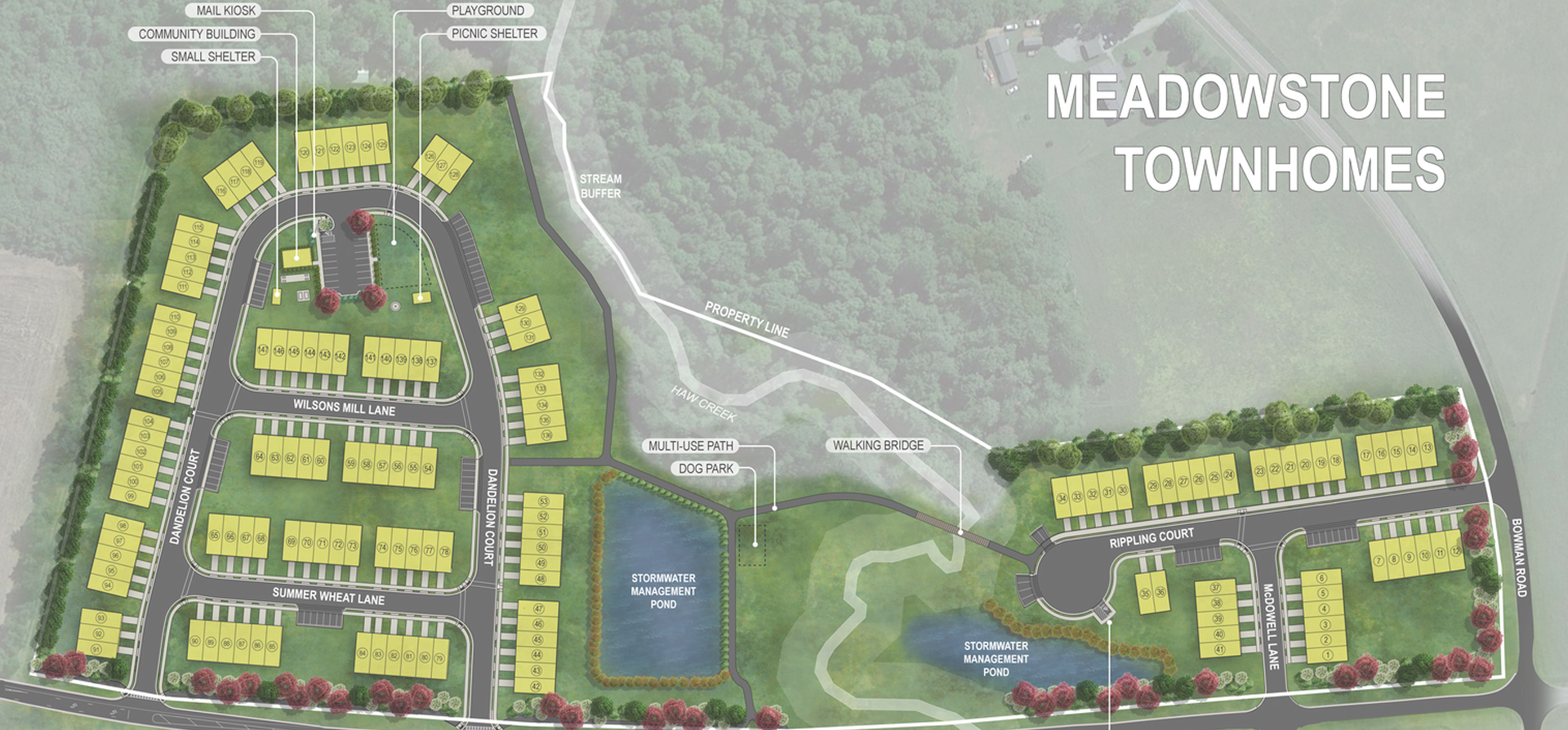

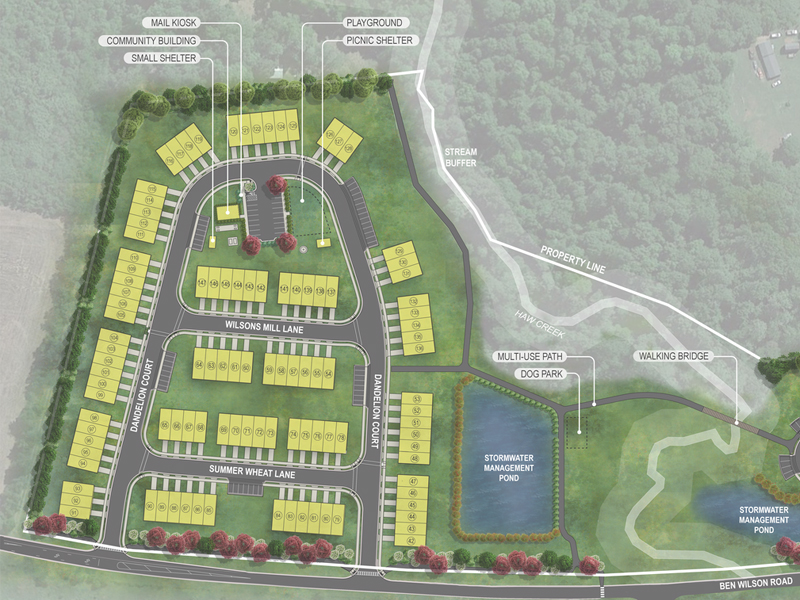

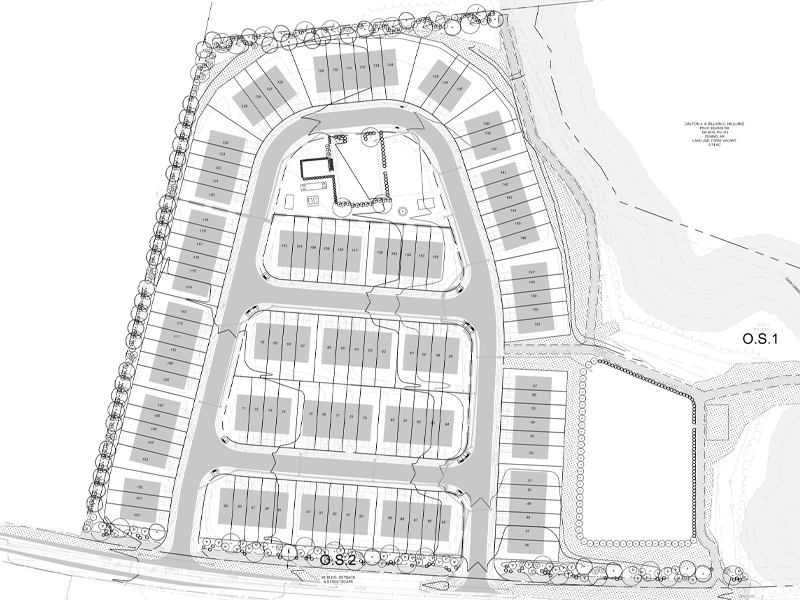

The design development/site plan services that our team will complete include design drawings and a site plan layout that includes utilities, outdoor lighting, landscaping, stormwater management, grading, soil and erosion control, drainage facilities, landscape plan, and trash collection. We will also prepare a stormwater management plan that will be in accordance with the Phase II Stormwater Ordinance of the City of Mebane.

Our team will also prepare the required construction plan drawings for final approval by the City of Mebane.

Project Details

Project Size

168 Units
~25.6 Acres

Project Location

Orange County, NC

Project Type

Multi-Family/Residential
